Topic: Running DTS from ASP page

Posted By: Gary
Subject: Running DTS from ASP page
Date Posted: 05 November 2007 at 1:11pm

Hi,

I am trying to run a DTS from an asp page and have had some success, but now I am struggling when it comes to data pump tasks that import data from an Excel file.

My environment is this:

Webserver

asp page that uploads an Excel file (using ASPUpload)
asp page then calls LoadFromSQLServer which executes a DTS located on the Database server
running with Windows Authentication

Database Server (SQL 2000)

DTS package that contains SQL tasks and a Data Pump task which loads data from the Excel file located on the Webserver

When I run the DTS from Ent Manager it works fine.

When I run from the asp page all SQL tasks work, but the Data Pump fails.

I have played around with the security of folder in which the Excel file is located, but to no avail.

When I built the code I did so in a single server environment (single machine acting as webserver and database server) and it ran just fine.

Now in a 2 server environment it fails which suggests maybe a permissions issue with accessing the data (Excel) file. But having toyed with the folder permissions I cant help but think that there is more tp it than that.

Any ideas?

Thanks

Gary

Replies:

Posted By: socialanimal
Date Posted: 05 November 2007 at 1:50pm

Here's the code I use to do the exact same thing, the code will tell you where it's failing which is obviously the first thing you need to make sure of. It does sound like it is a permissions issue, but before going any further and speculating, it's probabaly easier to find out where its failing (at which step) and go on from there.


'***************************************************************************************'
'                                            '
' Run the DTS Package                                    '
'                                            '
'***************************************************************************************'

const DTSSQLStgFlag_Default = 0

const DTSStepExecResult_Failure = 1

set objDTSPackage = CreateObject("DTS.Package")

blnSucceeded = true

objDTSPackage.LoadFromSQLServer "SQLServername", "username", "password", SQL_Server_TblName, "", "", "", "DTS_Package_Name"

objDTSPackage.Execute

for each objDTSStep in objDTSPackage.Steps

if objDTSStep.ExecutionResult = DTSStepExecResult_Failure then

strResult = strResult & "Package " & objDTSStep.Name & " failed.<br>"

blnSucceeded = false

else

strResult = strResult & "Package " & objDTSStep.Name & " succeeded.<br>"

end if

next

response.write strResult

Posted By: Gary
Date Posted: 05 November 2007 at 2:08pm

Thanks for the suggestion....

I have used similar code to identify the step that is failing and it is indeed the Data Pemp step from the Excel file.

Furthermore, if I remove the Data Pump step, then the package completes successfully.

Conclusion is that there is definitely a permissions issue.

Problem remains that I cannot over it.

IIS is running under Windows Authetication only. Connection is using a DSN on the IIS server which points to the database on the remote database server.

Now I thought that with the above, access to the source Excel file would be using my user credentials. My user definitely has access to the file.

Posted By: ctscott
Date Posted: 05 November 2007 at 2:38pm

thanks Socialanimal. i've always figured you could do it but didn't know how or what to search for.

-------------
______________________
http://www.cfbtrivia.com" rel="nofollow - College Football Trivia

Posted By: socialanimal
Date Posted: 05 November 2007 at 2:44pm

Gary wrote:

Thanks for the suggestion....

I have used similar code to identify the step that is failing and it is indeed the Data Pemp step from the Excel file.

Furthermore, if I remove the Data Pump step, then the package completes successfully.

Conclusion is that there is definitely a permissions issue.

Problem remains that I cannot over it.

IIS is running under Windows Authetication only. Connection is using a DSN on the IIS server which points to the database on the remote database server.

Now I thought that with the above, access to the source Excel file would be using my user credentials. My user definitely has access to the file.

Just to bounce some questions off you so that we can try and get to the bottom of this then:

On the SQL Server, who are you logged in as ? Yourself or a built - in account (eg administrator).

On the excel file itself, do you have the inherited permissions for the entire folder ? And on the excel file you're only reading the information ?

Have you tried using anyone elses authentication when executing the DTS ? If so, did that work ?

Posted By: socialanimal
Date Posted: 05 November 2007 at 2:45pm

ctscott wrote:

thanks Socialanimal. i've always figured you could do it but didn't know how or what to search for.

No sweat mate. Very handy tool. Don't really have a call to execute it in ASP so much, generally run it as a scheduled task overnight.

Posted By: Gary
Date Posted: 05 November 2007 at 2:52pm

On the SQL Server, who are you logged in as ? Yourself or a built - in account (eg administrator).
The server is logged on with a domain account that is a member of the local admins group on both the web and SQL server.

On the excel file itself, do you have the inherited permissions for the entire folder ? And on the excel file you're only reading the information

Yes, the Excel file has the inherited perms (everyone has Full Control access)

And on the excel file you're only reading the information ?
Yes, all I am doing is having the Excel file as a data source and using a Data Pump task to pull the data into SQL

Have you tried using anyone elses authentication when executing the DTS ? If so, did that work

Yes, I even tried using the domain account that I mentioned above (the one that is a member of local admin group) and it didnt work

Posted By: Gary
Date Posted: 05 November 2007 at 3:00pm

I cant help but feel that when the DTS is invoked via an asp, it is not using any windows based authentication when trying to access the Excel file.

The code example provided above uses a SQL User Account to run the DTS - could that be part of the problem? If so, how do I run the same but using a domain account?

Posted By: socialanimal
Date Posted: 05 November 2007 at 3:02pm

Ok thats even stranger, if all permissions and everything are set to how they should be Confused

Can you run a trace in the SQL profiler and see exactly what it says in there ? ...

Posted By: socialanimal
Date Posted: 05 November 2007 at 3:05pm

Found this:

http://www.asp101.com/articles/carvin/dts/default.asp

Got some interesting points about what accounts are used when executing DTS from web page.

Posted By: Gary
Date Posted: 05 November 2007 at 3:05pm

I'll give that a go and report back.

In the meantime, I enabled error logging and this is what I got:

Step 'DTSStep_DTSDataPumpTask_1' failed

Step Error Source: Microsoft JET Database Engine
Step Error Description:Failure creating file.
Step Error code: 80004005
Step Error Help File:
Step Error Help Context ID:5003436

Step Execution Started: 05/11/2007 15:02:54
Step Execution Completed: 05/11/2007 15:02:54
Total Step Execution Time: 0.08 seconds
Progress count in Step: 0

Posted By: socialanimal
Date Posted: 05 November 2007 at 3:10pm

Gary wrote:

I'll give that a go and report back.

In the meantime, I enabled error logging and this is what I got:

Step 'DTSStep_DTSDataPumpTask_1' failed

Step Error Source: Microsoft JET Database Engine
Step Error Description:Failure creating file.
Step Error code: 80004005
Step Error Help File:
Step Error Help Context ID:5003436

Step Execution Started: 05/11/2007 15:02:54
Step Execution Completed: 05/11/2007 15:02:54
Total Step Execution Time: 0.08 seconds
Progress count in Step: 0

Do i take it that task_1 is the excel file being used as a data source ? If its trying to create a file using the IIS account, this could be to blame.

Posted By: Gary
Date Posted: 05 November 2007 at 3:15pm

Yes, task_1 is where I try to import data from the Excel file.

"If its trying to create a file using the IIS account" - I am not creating a file inthe DTS. All I am tryingto do is read from a file (Excel) and imprt the data from the file into a SQL table.

Posted By: socialanimal
Date Posted: 05 November 2007 at 3:21pm

Hmmm ....

The createfile() error in the description is covered in the MSKB http://support.microsoft.com/kb/q175671/. This may help ?

Posted By: Gary
Date Posted: 05 November 2007 at 4:27pm

Interesting MSKB article there....

I have tried running SQL Setup (from the CD) but cannot see anything to do with "Change Network Support".

For something that you'd expect to be pretty much straight forward, this is turning into a nightmare Ouch

Posted By: socialanimal
Date Posted: 05 November 2007 at 4:29pm

Yeah can imagine !

I'm trying to consider what it could possibly be, other than it being an issue with the incorrect user login being used (ie the IIS account rather than your own).

Could you post the code your using (obviously minus the authentication details) Tongue

Posted By: Gary
Date Posted: 05 November 2007 at 4:40pm

Here's the code that I am using (excluding all presentation and error handling)....

sSQL_Server_Name = "UKSLBA52"
sDTS = "Comm_Edu_Import"
CALL RunDTS(sDTS)

' *** RUN DTS PACKAGE ***
FUNCTION RunDTS(sDTS)

Const DTSSQLStgFlag_Default = 0
Const DTSStepExecResult_Failure = 1

Dim oPkg, oStep, sMessage, bStatus

Set oPkg = Server.CreateObject("DTS.Package")
oPkg.LoadFromSQLServer sSQL_Server_Name, "sa","password",DTSSQLStgFlag_Default,"","","",sDTS

oPkg.Execute()

END FUNCTION

The DTS package basically has a SQL Connection to the DB itself, a SQL Task that deletes data from TableX, an Excel connection and a Data Pump that imports data from Excel to TableX

Posted By: socialanimal
Date Posted: 05 November 2007 at 4:54pm

As the "sa" / "password" combo is a default SQL server authentication method, is this what your actually using in your script ?

Posted By: Gary
Date Posted: 05 November 2007 at 5:06pm

Yes I am using the sa account and the associated password (which incidentally isn't "password").

The asp script is using SQL Server authentication and the SQL connection within the DTS package is also using the SQL Server authentication.

Should I be using a domian account to connect the asp to SQL and if so, how do I go about doing that?

Posted By: socialanimal
Date Posted: 05 November 2007 at 5:13pm

No it should be using the SQL server account so thats correct, its the permissions in the script thats failing for some reason. Could you try replacing the DTSSQLStgFlag with the following -
DTSSQLStgFlag_UseTrustedConnection and see what the results are, if any?

Posted By: Gary
Date Posted: 05 November 2007 at 5:39pm

OK, I get the same error when I change the script to use:

oPkg.LoadFromSQLServer sSQL_Server_Name, "sa", "password", DTSSQLStgFlag_UseTrustedConnection,"","","",sDTS

If I then remove the SQL Account details:

oPkg.LoadFromSQLServer sSQL_Server_Name, "", "", DTSSQLStgFlag_UseTrustedConnection,"","","",sDTS

I get the following:

Microsoft OLE DB Provider for SQL Server error '80040e4d'
Login failed for user 'fanle01'

Now, the strange thing is that user 'fanle01' is an actual domain account,but where is it picking this up from? It certainly is not in any of my scripts, connections, etc. Most strange!

(I haven't checked what permissions 'fanle01' has - should I check, and if so, what should I check - folder/file perms / SQL perms?)

Posted By: socialanimal
Date Posted: 05 November 2007 at 5:49pm

Ok, It looks like we're finally hitting the correct spots with our troubleshooting.

On the PC which is running IIS who is logged on to this machine ?
On the PC which is running SQL 2000 who is logged in to this machine ?
What kind of NT account does fanle01 have ? Is it a domain user / admin ? What kind of permissions do they have ?

Ideally I think we need to be looking at the NT user account which is trying to execute this.

Could you try putting the code into a vbs file and running it from your workstation and log any results ?

Posted By: Gary
Date Posted: 05 November 2007 at 6:03pm

Both the web and database servers are logged in under a different domain account which is a member of the local admins group on both boxes.

fanle01 is a standard user account on the domain. However it does have access to the folder in whoch the Excel file is located and admin access to the SQL Server installation.

Now I come to think about it - I did get 'fanle01' to log onto my laptop a week or so ago. And I have just had confirmation from the user that he changed his password at the end of last week. Maybe the user / password are somehow cached on my laptop? Thing is though, why is it picking up that user account and not mine that I am currently logged on as?

As far as getting the code into a vbs is concerned, I'm afraid I dont really know how to do that. I saved as a VB .bas file and tried running, but it came up with user defined type errors.

Posted By: socialanimal
Date Posted: 05 November 2007 at 6:08pm

The first post I made on this thread was taken directly from a .vbs file simply copy and paste that in to a text file and save as filename.vbs but replace the response.write with msgbox.

To check if it is using a cached version of fanle01's credentials (though like you i don't see why it should) then try creating a test asp page to write out request.servervariables("AUTH_USER") then at least you can confirm or deny this theory.

Lets go from there and see how we get on.

Posted By: Gary
Date Posted: 05 November 2007 at 6:19pm

Success - I created the .vbs and ran directly from my laptop.

I used the following:

......LoadFromSQLServer "servername", "sa", "password", SQL_Server_TblName, "", "".......

So that kind of suggests something wrong with IIS, but what?

Posted By: socialanimal
Date Posted: 05 November 2007 at 6:21pm

Good question lol.

Did you try the test asp page to check which NT credentials it's using ?

Posted By: socialanimal
Date Posted: 05 November 2007 at 6:27pm

Or ... have you tried the exact script that worked in the VBScript in an ASP document to see if this worked ?

Posted By: Gary
Date Posted: 05 November 2007 at 6:27pm

Ah, yes - sorry I forgot to say....

When I queried the servervariables it returned my domain account.

Still no idea where fanle01 comes into it

Posted By: socialanimal
Date Posted: 05 November 2007 at 6:32pm

That is extremely strange. I'm just seeing if theres another way we can go through the authentication process. There MUST be a way to also specify an NT user credentials. I will let you know when I find something.

Posted By: Gary
Date Posted: 05 November 2007 at 6:34pm

Cheers - BTW I just plugged the VBS code directly into an ASP and only changed msgbox to response.write

Same errors as before

I really appreciate your input on this.

Posted By: socialanimal
Date Posted: 05 November 2007 at 6:37pm

It has to be cached authentication. Thats the only thing thats going through my mind at the moment. You mentioned that you're using a laptop? Does this mean you're not manually logged into your network ?

Posted By: Gary
Date Posted: 05 November 2007 at 6:44pm

"Does this mean you're not manually logged into your network ? " - Not sure I understand what you mean......Yes I'm working on my laptop which is connected to the network and I am logged onto the domain.

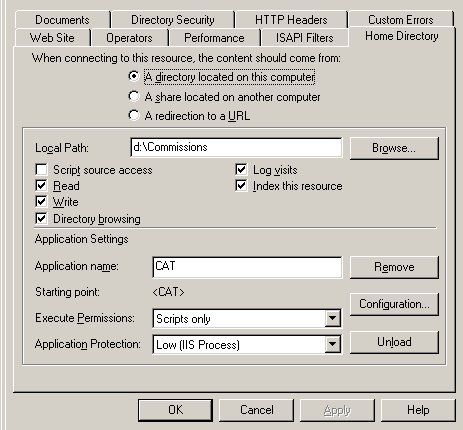

Incidentally, I copied the asp file over to another box running IIS (with Windows Authentication) amnd got this....

Microsoft OLE DB Provider for SQL Server error '80040e4d'

Invalid authorization specification

Posted By: socialanimal
Date Posted: 05 November 2007 at 6:55pm

Ok this is getting stranger ...

A few questions that come to mind ?

Is your laptop using a local or roaming profile ?
On this other box using IIS can you connect to the same database ?
Are you logged on to this box directly ?

Posted By: Gary
Date Posted: 05 November 2007 at 7:01pm

Sorry, I dont know whether I am using local or roaming profile?

Using the other box I can connect to the db through IIS

I am not logged onto the other box directly

I think that is all my brain can take today. I shall go home and sleep on it.

Let me know if you have any more suggestions.

Again, I really appreciate the effort that you are putting into this.

Posted By: socialanimal
Date Posted: 05 November 2007 at 7:04pm

ok no problem ... will keep looking into this for you

Posted By: socialanimal
Date Posted: 06 November 2007 at 1:14pm

Have you tried accessing the web page (that executes the dts) from another machine ?

Posted By: Gary
Date Posted: 06 November 2007 at 2:23pm

Yes, and I get exactly the same errors back.....

Accessing page returns the "Login failed for user 'fanle01'" error (machine accessing the page is not logged on under the fanle01 account.

Posted By: socialanimal
Date Posted: 06 November 2007 at 2:32pm

How are the permissions setup in IIS ? Do you have the default IIS account enabled or disabled for anonymous login? Do you use integrated windows authentication or another option ? In the home directory tab, which options do you have selected (ie read, write, execute etc)?

Posted By: Gary
Date Posted: 06 November 2007 at 3:01pm

IIS is configured as follows:

Integrated Windows autentication only

(not sure about the default IIS account though - how can I find this?)

Posted By: socialanimal
Date Posted: 06 November 2007 at 3:47pm

To view it go into the directory security and edit tab, that will bring up the above dialog screen. I'm just checking things now ... I honestly don't think it would be the cache now we've tested other things but I could be wrong.

Posted By: Gary
Date Posted: 06 November 2007 at 4:45pm

IIS is using Windows Authetication only we need to capture the user's id with Request.ServerVariables("LOGON_USER")
